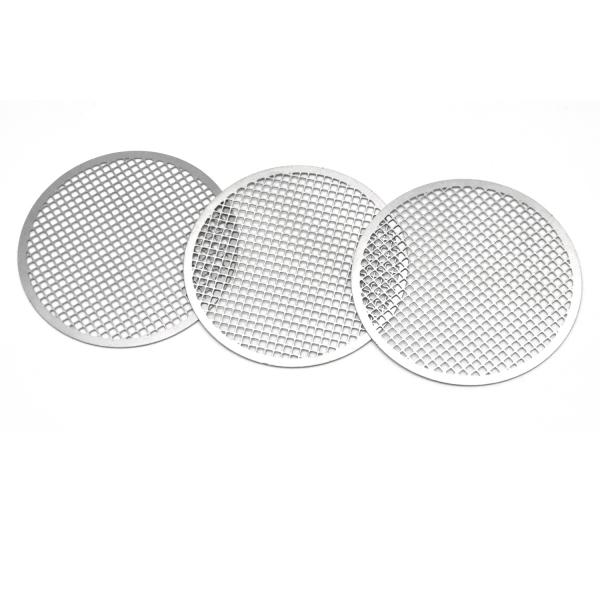

Product Description
1. Material: Stainless steel woven wire mesh ss201 304 316 316l etc.
2. Wire Diameter: 0.0183-2.03mm.
3. Mesh count:
2-635 mesh,12*64-500*3200 mesh.
Popular micron size:25,50,100,150 micron,etc.
4. Weave pattern: Plain Weave ,Twill Weave or Dutch Weave.
5. Shape:Cylinder type.
6. Features:
Oxidation and corrosion resistant.
Acid and alkali resistant.
Long service life.
Big pressure resistant.
| Wire diameter | 0.01 mm - 5 mm |
| Disc diameter | 5 mm - 600 mm (custom size: 8 mm - 3800 mm) |
| Weaving method | plain weave, twill weave, dutch weave, etc |
| Layer | single layer or multiple layers |
| Filter disc shapes | round, rectangular, square, crescent and semicircle, etc |
| Marginal materials | copper, aluminum, stainless steel, rubber, etc |
| Filtration precision | 0.2 µm - 100 µm |
| Specification of disc filters |
| Mesh | Wire Diameters. (mm) | Opening(mm) | Materials |
| 8-28 | 0.3-1 | 0.8-2.66 | Stainless steel Wire Mesh, Sintered mesh Steel Wire Cloth |
| 35 | 0.17 | 0.56 |
| 40 | 0.23 | 0.40 |
| 50 | 0.20 | 0.31 |
| 60 | 0.15 | 0.27 |
| 70 | 0.12 | 0.24 |
| 80 | 0.13 | 0.19 |
| 90 | 0.12 | 0.16 |
| 100 | 0.10 | 0.15 |
| 120 | 0.09 | 0.12 |
| 150 | 0.063 | 0.11 |
| 180 | 0.053 | 0.09 |
| 200 | 0.053 | 0.07 |
| 220 | 0.05 | 0.065 |
| 250 | 0.04 | 0.062 |
| 270 | 0.035 | |
Detailed Images Filter medium for Disc Filters is multi-layer sintered wirecloth, with a rating range from 0.5 to 200micron, in a diameterfrom 200mm to 3000mm. Disc filters with multi- layer sinteredwire cloth as filter medium, enjoy good strength, accurate filterrating, long life-span and repeatedly cleaning. Materials: Standard material of disc filters is SUS3l6L. Othermetals like Nickel alloy or Titanium alloy are also available at customers request. Application: Disc filters are ideal filter fittings for three- -in-one filtration (filtering, washing and drying) in pharmaceutics,food, chemical industries and polymers. Disc filters work as a complete unit or in parts. Disc filters Series Disc Filter Model: DF-D-R, DF-DiscFilter, DDiameter, RFilter Rating
Application:
Beer and water treatment equipment filter.
Petroleum chemical industry.
Oil field pipeline filter and fuel refueling equipment filter.
Pharmaceutical and food processing filed.
